Protectolast WS VCI

Protectolast WS VCI: a unique water-soluble powder designed to safeguard metal surfaces in enclosed spaces, self-seal systems, and after hydro tests.

Home/Products/Protectolast WS VCI

Service Overview

Protectolast WS VCI—your ally against corrosion’s tyranny. there’s metal, there’s protection!. a unique water-soluble powder designed specially to safeguard metal surfaces in enclosed spaces, self-seal systems, and after hydro tests by creating protective layer on metals, effectively preventing corrosion in ferrous materials in oil and gas pipes.

Protectolast WS VCI stands out with its strong protective abilities. It eliminates the need for forced drying after pressure tests, reducing the risk of issues like valve seizing and pipework blockages. Furthermore, Protectolast WS VCI excels in safeguarding metals in hard-to-reach areas, making it particularly suited for dry corrosion protection in recessed spaces, interior cavities, and voids.

Key Benefits

Preventing LOPC & Enhancing Safety
Engineered Reliability

Preventing LOPC & Enhancing Safety

Cost Efficiency & Operational Benefits
Advanced Analysis

Cost Efficiency & Operational Benefits

Prevents Loss of Primary Containment (LOPC) by forming a protective layer on metal surfaces
Compliance Assurance

Prevents Loss of Primary Containment (LOPC) by forming a protective layer on metal surfaces

Optimized solutions that reduce installation time and operational disruption
Minimized Downtime

Optimized solutions that reduce installation time and operational disruption

Our Engineering Approach
Corrosion Protection and/or Repairing of Wet or Dry Steel/Concrete
Povides effective vapor-phase, liquid, and interface protection for ferrous metals.
Offers more than 24 months of continuous protection. Completely water-soluble, making it suitable for adding to water during pressure testing.
Available in user-friendly forms like powder, sleeve, and packets.
Easily removable using Pressured Air or Water Flushing. Simple application and removal process; environmentally friendly and biodegradable, ensuring no pollution. Free from chromates and heavy metals, aligned with environmental concerns
Successfully passed SGS testing and complies with RoHS Directive.
EngineeringApproachImg

⦁ White Crystalline Powder PH: 6.5-7.5 (Aqueous solution) ⦁ Protection for up to 5 years, depending on conditions ⦁ Compatible with Ferrous metals, aluminum, Zinc

Application
layers
Inner surfaces of pipes, vessels, and tubular structures.
layers
Internal pipework of compressors, turbines, engines, boilers, and heat exchangers. Steam and closed-loop heating/cooling systems
layers
Surfaces during/after hydro blasting and hydrostatic testing
layers
Machinery and spare parts during transport and storage.
layers
Cavities, holes, and cast bodies Process pipework and vessels.
layers
Underside of above-ground storage tanks facing soil
Applications

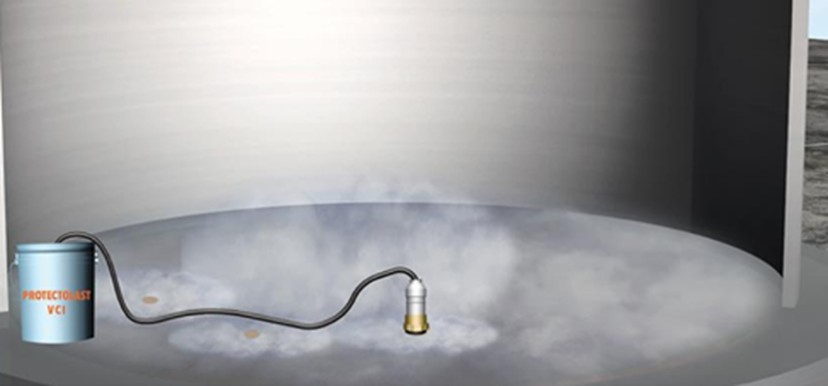

Internal Temporary Ports Fogging System
Internal Temporary Ports Fogging SystemA unique water-soluble powder designed specially to safeguard metal surfaces in enclosed spaces, self-seal systems, and after hydro tests.

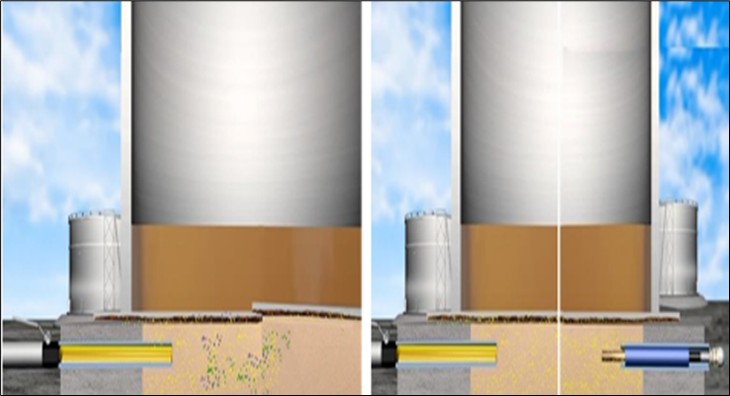

External Ports Infusion System
External Ports Infusion Systema unique water-soluble powder designed specially to safeguard metal surfaces in enclosed spaces, self-seal systems, and after hydro tests by creating protective layer on metals, effectively preventing corrosion in ferrous materials in oil and gas pipes.

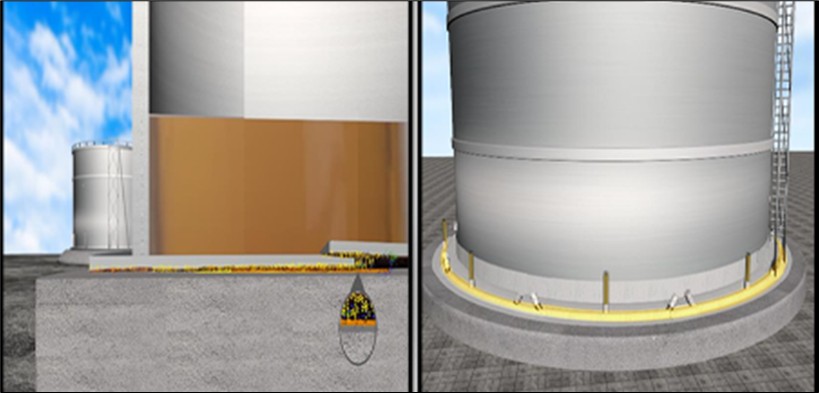

Chime Ring Injection
Chime Ring InjectionWS VCI Tank Chime Ring Injection is a specialized method using Water-Soluble Vapor Corrosion Inhibitors (VCIs) to protect the critical chime area (where the tank shell meets the floor) from rust, especially in tanks with concrete/asphalt foundations, by injecting the inhibitor into the sand pad or under the tank floor via dedicated delivery systems (IDS) to form a vapor shield, preventing corrosion without needing to lift the tank

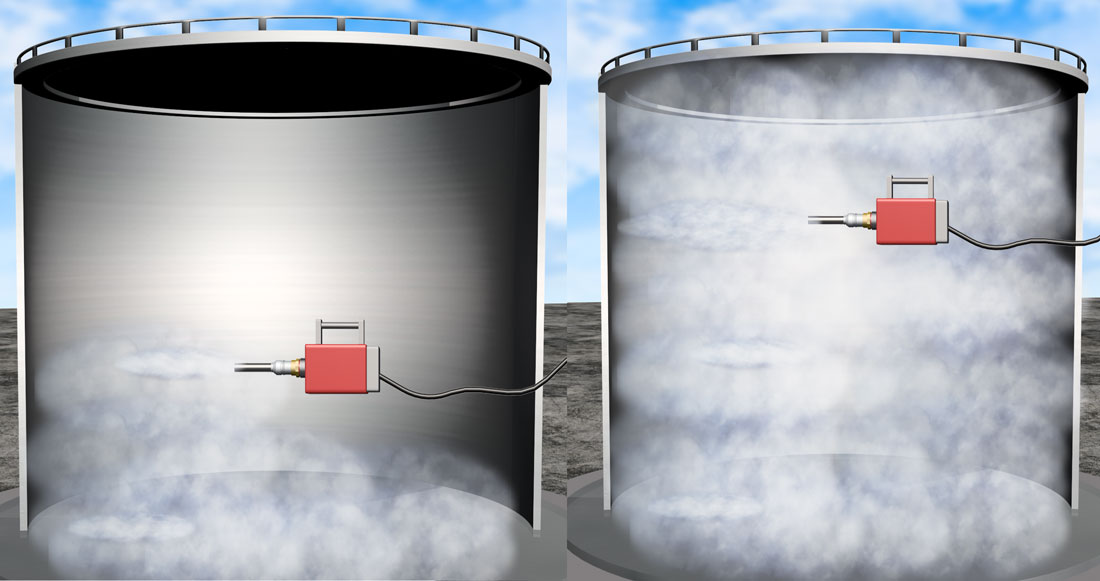

VCI Internal Surface Fogging
VCI Internal Surface FoggingVCI internal surface fogging is a corrosion prevention method where a volatile corrosion inhibitor (VCI) product (either a dry powder or a liquid solution) is atomized or sprayed into an enclosed space. The vapors diffuse throughout the void, forming a protective molecular barrier on all metal surfaces, including hard-to-reach areas, to prevent rust and oxidation.
