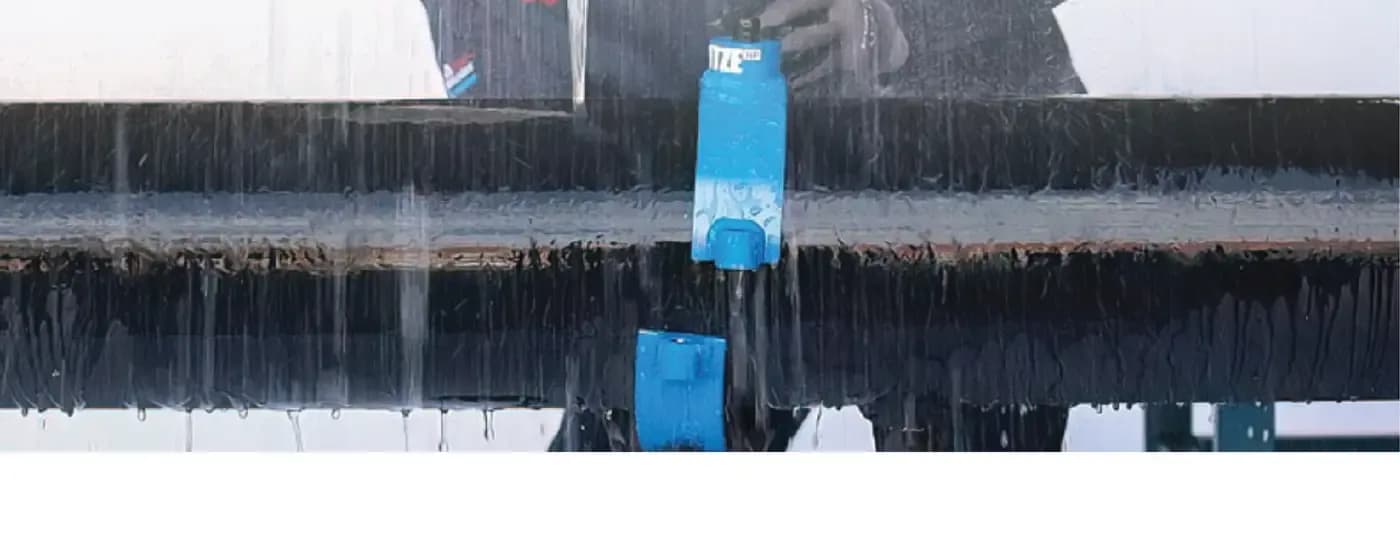

Spitze HP Clamp
The Spitze HP clamp is engineered and manufactured generally in accordance with ASME VIII Div 1 for the temporary repair of live high-pressure leaks without having to shut down or isolate the system.
Request This ServiceThe Spitze HP clamp is resistant to the harsh chemical environment prevalent in the oil, gas and petrochemical industries.
The Spitze HP clamp is engineered to operate in working temperatures up to 200°C and has a pressure rating of, dependant of clamp size, up to 200 Bar with a maximum application pressure of, dependant of clamp size and defect/hole size, up to 150 Bar. Please refer to the maximum and minimum service temperatures of the various Spitze bungs as illustrated in the SPITZE BUNG column below.
The installation of the Spitze HP clamp is non-invasive and may be applied to live piping systems without shutting down for the repair on hole sizes up to 25mm Diameter. Spitze HP clamp may be applied to piping sizes up to 56, and may be installed on most substrates and is suitable for sub sea application on special request.
Key Benefits
Engineered Reliability
Fast, Non-invasive repair - does not require hot work
Advanced Analysis
Repairs done live – no unplanned downtime
Compliance Assurance
Can Handle complex geometries
Minimized Downtime
Resistant to Harsh chemicals
Our Engineering Approach
Our engineers conduct thorough evaluations of your assets to identify critical issues provide design calculations and repair recommendations generally in accordance to ASME Pcc2 and/or ISO-TS-24817 which is signed off by our internal PR engineers.
- Uses
- Pinholes
- Illegal Hot Taps
- Through Wall Corrosion
- Weld Anomalies
