Protectolast WS VCI
Why to Choose Protectolast System?
Preventing LOPC & Enhancing Safety
- -Prevents Loss of Primary Containment (LOPC) by forming a protective layer on metal surfaces.
- -Stops soil-side & internal corrosion, reducing leaks, spills, and safety risks.
- -Supports HSE compliance and minimizes environmental impact.
Cost Efficiency & Operational Benefits
- -Up to 60 months of protection = Lower maintenance costs & extended asset life.
- -Reduces downtime — long-term protection with minimal intervention.
- -Easy Application and Easy Removal.
External Ports Infusion System

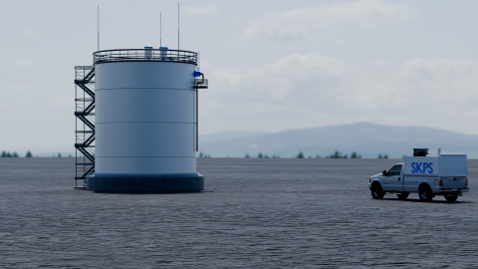

SKPS has developed and standardized a proprietary system for the application of Protectolast® Water-Soluble Vapor Corrosion Inhibitors (VCI). Following the completion of the Initial Site Assessment, Design Report, Method Statement (MS), and all other relevant documentation, the SKPS Protectolast Heavy-Duty Service Truck is mobilized to site for execution.

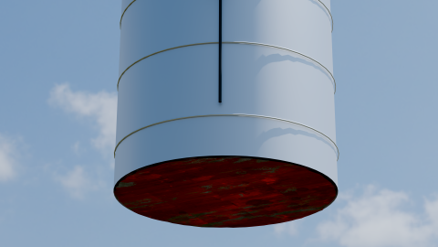

In most cases, the Protectolast® WS VCI system targets the underside of the tank bottom plate, specifically the interface between the steel base and the soil foundation. This is a critical enclosed environment that becomes inaccessible once the tank is commissioned, making proactive protection essential.

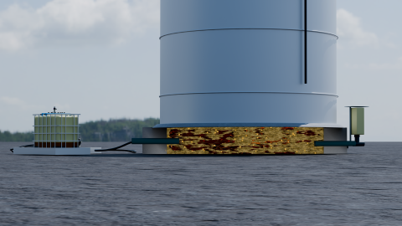

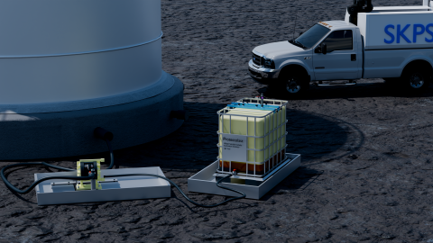

The application setup comprises an Intermediate Bulk Container (IBC) where the Protectolast® VCI concentrate is diluted and homogenized with water, a high-pressure pump to ensure a steady and controlled flow, and a network of hoses, injection pipes, and specialized fittings. This configuration allows for efficient delivery, even distribution, and continuous monitoring before, during, and after injection.

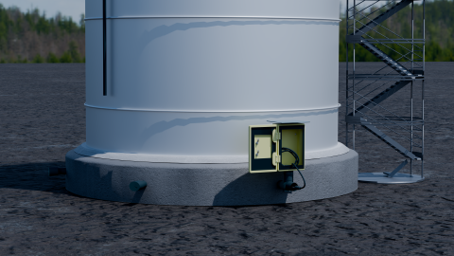

In parallel, ER probes are installed in the same area where VCI is introduced. These probes are positioned to make direct contact with the foundation material and are housed within custom-engineered SKPS junction boxes. The junction boxes are designed for durability and accessibility, allowing real-time corrosion rate monitoring through data loggers without disrupting tank operations.

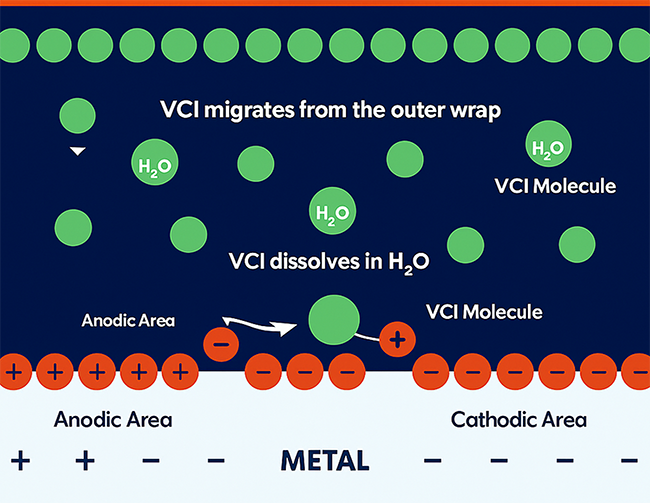

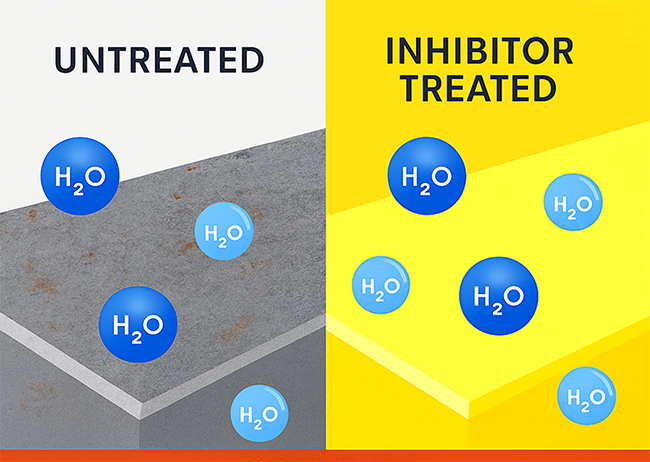

Once injected, the Protectolast® VCI particles diffuse through the sand layer, forming a molecular protective film over the steel surface. This inhibitive layer neutralizes corrosion reactions, ensuring long-term protection of the tank bottom for up to five years, subject to the results of the soil resistivity and moisture content analyses conducted during the site assessment phase.
Types of Protectolast WS VCI Applications

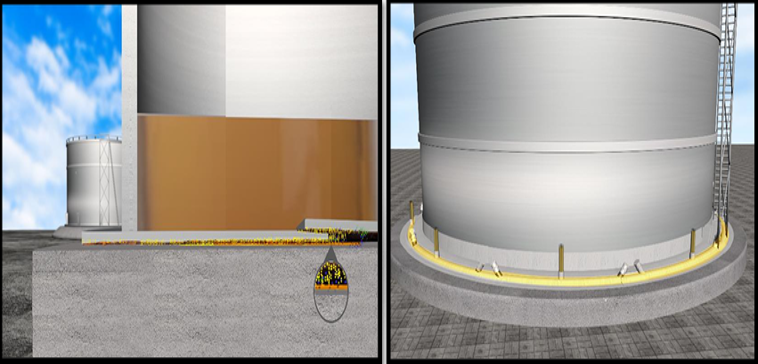

Tank Chime Ring Injection
Internal Temporary Ports Fogging

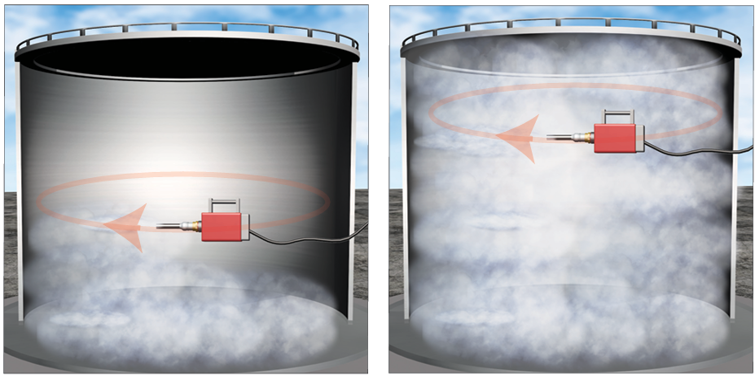

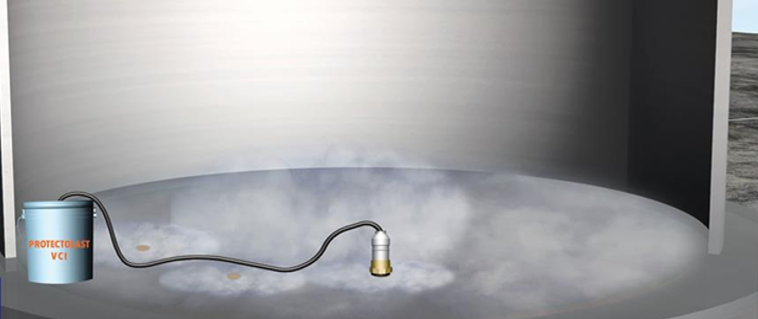

VCI Internal Surface Fogging
Product Overview
- Offers more than 24 months of continuous protection.
- Completely water-soluble, making it suitable for adding to water during pressure testing.
- Easily removable using Pressured Air or Water Flushing.
- Available in user-friendly forms like powder, sleeve, and packets.
- Simple application and removal process; environmentally friendly and biodegradable, ensuring no pollution.
- Provides effective vapor-phase, liquid, and interface protection for ferrous metals.
- White Crystalline Powder PH: 6.5-7.5 (Aqueous solution)
- Protection for up to 5 years, depending on conditions
- Compatible with Ferrous metals, aluminum, Zinc
- Protection for machinery and spare parts during transport and storage.
- Steam cooling pipes and closed-cycle heating and cooling systems.
- Tested structures’ inner surfaces during and after hydro blasting and hydrostatic testing.
- Cavities, apertures, holes, and casting bodies.
- Internal surfaces and pipework of compressors, turbines, engines, tanks, boilers, heat exchangers, etc.
- Inner surfaces of tubular structures, pipes, and vessels.
- Process pipework and vessels.
- Underside of above-ground storage tanks facing the soil.
Packaging & Storage
Clearing residues in powder form is as easy as a breath of fresh air. Use pressurized air and pure rinsing water to restore surfaces. In liquid form, a rinse with pure water will suffice if necessary.
Choose convenience that suits you best. Options include 3Kg sachets, 15Kg pails, 154kg drums, or customizable sizes.
Keep your investment safe and sound. Store indoors in a dry, sheltered space, keeping it shielded from direct sunlight and ensuring a temperature below 65 degrees Fahrenheit (18 degrees Celsius) to enjoy its effectiveness for up to 24 months.
